Best Wood for Aircraft Structures

For primary wooden aircraft structure, the strongest candidates are light softwoods with straight fibers and high stiffness for their weight. In this group, Sitka Spruce remains the reference material, while Douglas Fir, Western Hemlock, and Noble Fir can fit specific designs when their added weight, grading, and workability are accounted for.

• Sitka Spruce has a dried weight of about 26.5 lb/ft³ and a longitudinal stiffness near 1.60 million psi, so it gives spars and longerons useful rigidity without the weight penalty of denser woods.
• Sitka Spruce has straight grain, fine uniform texture, rapid drying, and only slight checking risk, which helps builders obtain long, clean stock for wing spars, cap strips, and other slender aircraft members.
• Douglas Fir is heavier at about 33.7 lb/ft³, but its high stiffness near 2.44 million psi and bending strength around 13,198 psi make it a serious structural substitute where the design can accept the extra weight or use a properly engineered smaller section.
• Douglas Fir has straight grain and slight drying distortion risk, but resin pockets can clog tools and the wood may need careful selection for clean, defect-free aircraft parts.

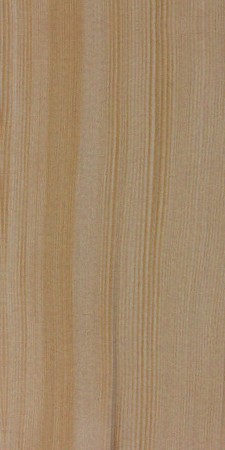

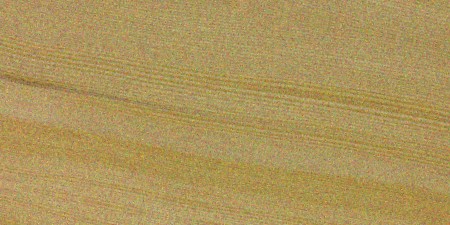

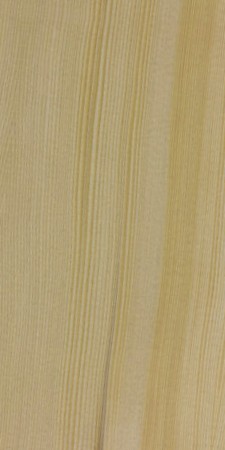

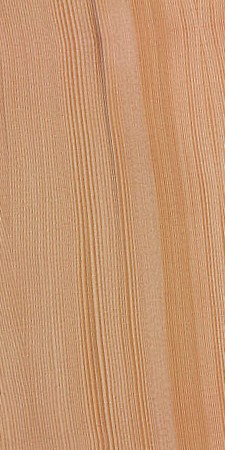

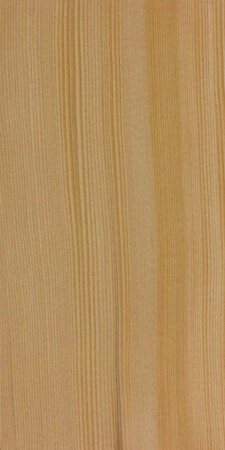

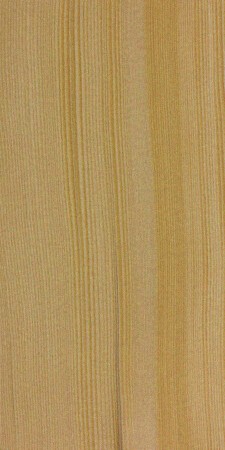

• Western Hemlock weighs about 29 lb/ft³ and has stiffness near 1.63 million psi, giving it a useful aircraft-grade strength-to-weight profile, although its coarser, less consistent texture requires stricter inspection than clear spruce.
• Noble Fir weighs about 25.9 lb/ft³ with stiffness near 1.62 million psi, so it can be attractive where light, straight-grained stock is needed, but its non-durable nature means it must be kept dry and well sealed in service.

Not every aircraft component needs spar-grade material. Ribs, cap strips, gussets, wingtip bows, fairings, and plywood skins often benefit from woods that machine easily, bend predictably, or peel into high-quality veneer.

Light rib and cap-strip stock

• Basswood weighs about 25.9 lb/ft³ and has a fine, uniform texture, so it is well suited to rib webs, light cap strips, model work, and non-primary pieces where easy shaping is more important than high fastener strength.
• Basswood glues and finishes very well, which helps in rib assemblies and small laminated parts, but its poor nail retention means adhesive design and joint fit are more important than mechanical holding power.
• Yellow Poplar weighs about 28.4 lb/ft³ and has straight grain with easy machining, making it useful for light interior, form, and curved components when the design does not require spar-grade strength.
• Yellow Poplar dries easily with low distortion risk, which helps thin parts stay usable, but its non-durable rating means exposed or damp aircraft locations need sealing and inspection.

Aircraft plywood face and core woods

• Birch has excellent peeling suitability and a fine, uniform texture, which is why it works well as face veneer in aircraft plywood where thin, even plies must bond reliably.
• Birch is much heavier than spruce at about 38.1 lb/ft³, so it is valuable in plywood skins, gussets, and panels but is usually not chosen when a long solid member must be as light as possible.
• Mahogany peels and slices well, has low shrinkage values, and glues reliably, which supports its use in aircraft plywood faces and stable panel work.
• Mahogany weighs about 37.5 lb/ft³ and may show slight interlocked grain, so it is better treated as a plywood or panel material than as a direct substitute for straight-grained spar stock.

Some aircraft wood parts are chosen less for minimum weight and more for concentrated loads. Landing gear fittings, engine bearers, bolt pads, blocks, and bent members may need hardwood toughness, bearing strength, or steam-bending ability.

• Ash has high bending strength around 16,389 psi and good bending aptitude, which makes it useful for curved and resilient aircraft parts where shock and flex are expected.
• Ash weighs about 42.5 lb/ft³, so it should be used only where its toughness and bending behavior justify the mass, not as a general replacement for spruce in long wing members.
• White Oak has high bending strength around 14,837 psi and very durable heartwood, so it can serve in localized high-compression or attachment areas where density is acceptable.
• White Oak weighs about 47.1 lb/ft³ and dries slowly with high checking risk, so it is unsuitable for weight-sensitive general structure unless the aircraft design specifically calls for it.
• Douglas Fir can also serve in highly loaded straight members because its stiffness is high for a softwood, but its added weight compared with spruce must be included in the balance and control calculations.
• White Pine and White Cedar belong in aircraft work only when the plans, engineering data, or approved repair information specifically allow them for the intended part.

The species name alone does not make wood safe for aircraft. A clear board of the right species can still be unsuitable if the grain runs out, the moisture content is wrong, or hidden defects interrupt the fibers.

• Straight grain should run with the long axis of spars, longerons, and cap strips because these members carry most of their load along the fibers.
• Low moisture variation protects glued joints and fitted assemblies, since swelling and shrinkage can stress scarf joints, plywood skins, and rib gussets.
• No knots or pitch pockets should be accepted in critical members because interruptions in fiber continuity reduce strength where the part most needs predictable load transfer.
• Minimal checking is important in spar stock because cracks can propagate under repeated bending, even when the piece looks acceptable at first glance.
• Controlled grain slope is essential because diagonal grain turns tensile and bending loads into splitting forces along the member.
• Documented grade and traceability matter most in certificated aircraft repairs, while experimental work still requires the same practical level of material judgment even when the paperwork rules differ.

Aircraft woods must machine cleanly and bond reliably, then remain protected from moisture. The best species for aircraft construction can still fail early if joints are poorly fitted or if the finished structure is allowed to absorb water.

• Sitka Spruce works easily when sharp tools are used, and its good glue adhesion supports scarfed spars, cap strips, and laminated assemblies.
• Douglas Fir nails and screws well, but its slight acidity can contribute to staining or metal corrosion in moist contact, so fittings and fasteners should be isolated and protected.
• Western Hemlock glues, stains, and finishes well, but the contrast between softer earlywood and harder latewood can create uneven sanding if tools and abrasives are not kept sharp.
• Basswood is very easy to carve and machine, which helps with rib details and shaped parts, but its softness means clamps, nails, and handling pressure can crush edges if care is not taken.
• Birch can split during fastening even though it holds nails well afterward, so pre-drilling and proper edge distance are important in plywood and panel assemblies.
• White Oak glues and finishes well, but its tannin content can darken around iron, so hardware selection and sealing matter when oak is used near fittings.

The most reliable approach is to match the wood to the part, not to choose one species for the whole aircraft. Long structural members, plywood skins, curved pieces, and concentrated-load blocks each place different demands on the material.

1. Sitka Spruce is the first-reference choice for spars, longerons, stringers, and cap strips because its low weight, straight grain, and useful stiffness give the best overall aircraft balance.
2. Douglas Fir is a strong substitute for selected primary members when the design accounts for its higher weight and when the stock is clear, straight, and carefully inspected.
3. Western Hemlock is a practical structural option where clean stock is available, but its less uniform texture calls for conservative inspection and careful surface preparation.
4. Birch and Mahogany are most relevant as aircraft plywood face woods because their peeling quality and bonding behavior support thin, stable panel construction.
5. Basswood and Yellow Poplar are best considered for ribs, light webs, cores, curved bows, and non-primary shaped parts where workability and low weight are useful.
6. Ash and White Oak belong in localized high-load, bending, or attachment zones rather than broad airframe structure because their strength comes with a substantial weight penalty.
