Best Wood for a Bar Top: Practical Choices

For most indoor bars, the strongest candidates balance hardness, finish quality, and predictable movement. Outdoor or damp-service bars shift the priority toward natural decay resistance and careful fastening.

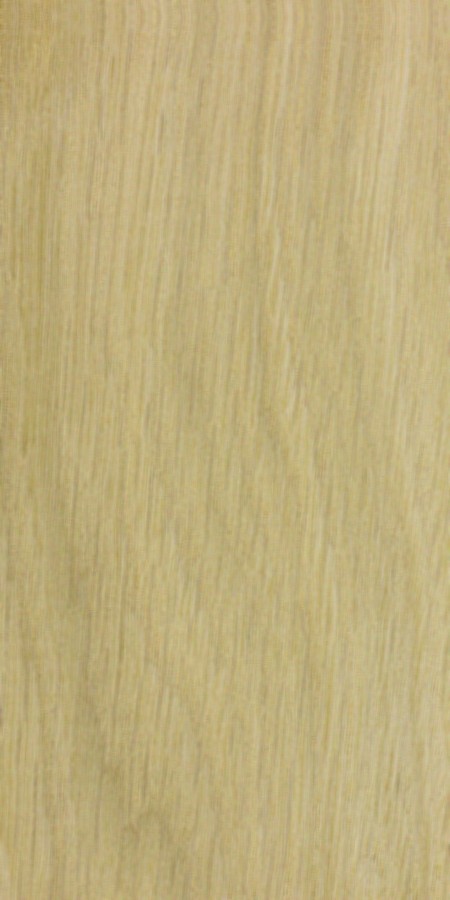

• White Oak is a strong all-around bar top wood because its 1,620 lbf Janka hardness gives good dent resistance, while tyloses in the heartwood help block liquid movement through the pores; this is useful around wet glasses and bar sinks, but the wood should be well dried because it has a high checking risk during drying.
• Hard Maple is a durable indoor working surface because its roughly 1,920 lbf Janka hardness resists dents better than many common hardwoods, and its fine, even texture leaves a smooth counter surface; its non-durable decay rating makes it a poor choice for outdoor bars unless it is fully protected and maintained.

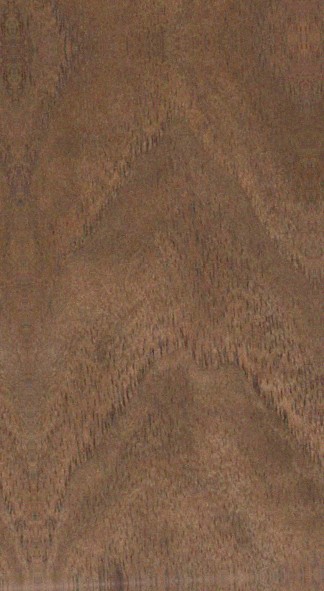

• Walnut suits indoor residential bars where color and moderate service are priorities; its 960 lbf Janka hardness is softer than oak or maple, so it can show dents sooner, but its relatively low tangential-to-radial movement ratio helps it behave well when properly dried, joined, and finished.
• Teak is useful for humid or outdoor bars because it is very durable and naturally oily, which helps it resist moisture; those same oils mean glue and film finishes need fresh surface preparation for reliable bonding.

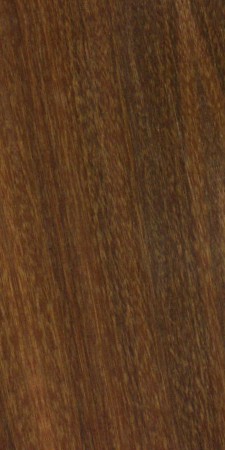

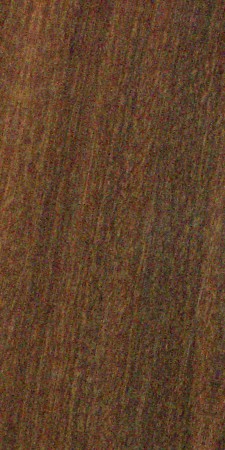

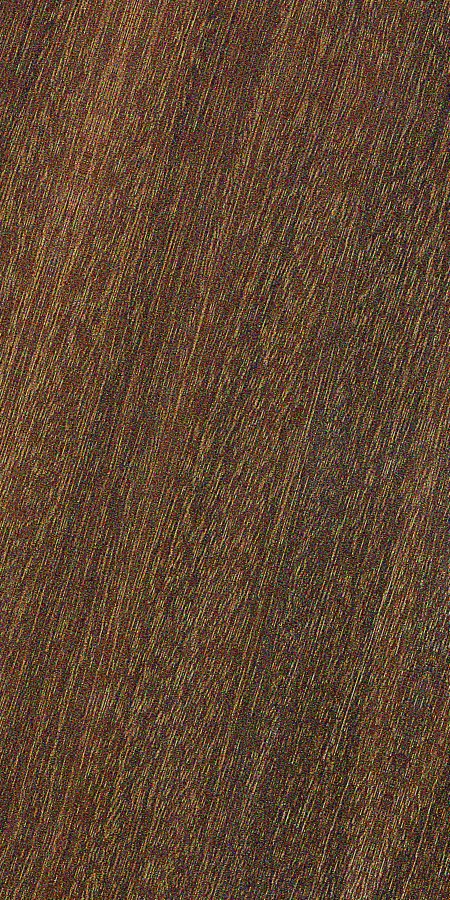

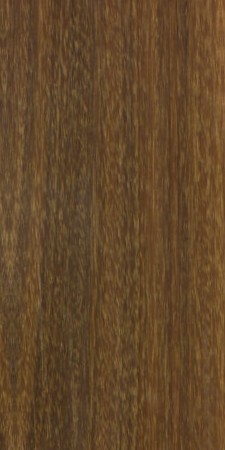

• Ipe is an exterior-grade option where extreme wear resistance is more important than ease of fabrication; its 4,380 lbf Janka hardness and very high density make it resistant to abuse, but also heavy, hard on tools, difficult to glue, and dependent on pre-bored fasteners.

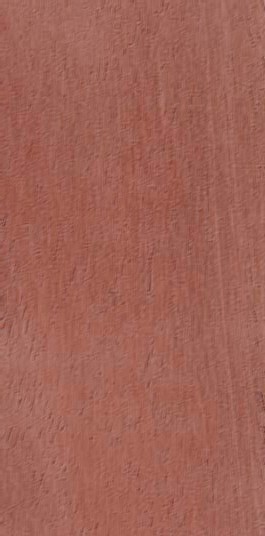

• Mahogany is a stable-looking interior or covered-bar option because its moderate hardness, rapid drying behavior, and low shrinkage support clean joinery and smooth finishing; it is durable against decay but still not a substitute for proper sealing in wet service.

No wood species should be treated as waterproof in a bar top. Species choice reduces risk, but the finish system, sealed underside, end-grain treatment, and maintenance schedule determine how the surface survives repeated spills.

• White Oak has blocked heartwood pores that slow liquid movement, which makes it better suited than open-pored woods around wet service areas; iron contact can cause dark staining because of tannins, so fasteners and nearby metal details should be chosen carefully.
• Teak has natural oils and very low movement values, so it tolerates humidity well; wipe or sand freshly before bonding or topcoating because oily surfaces can interfere with adhesion.

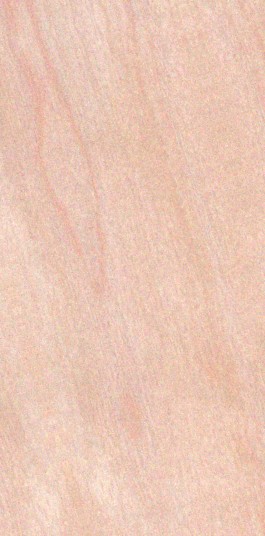

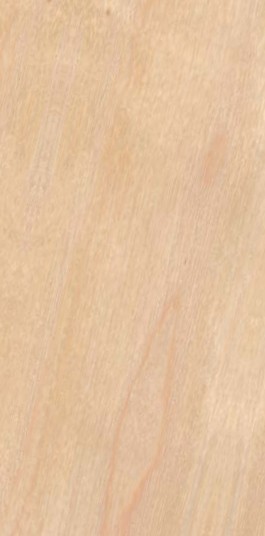

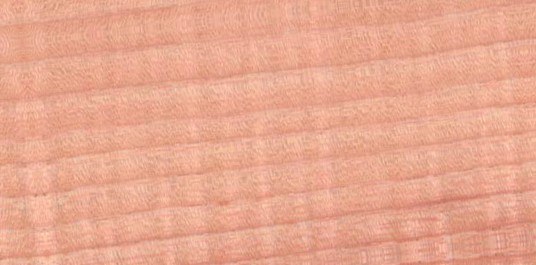

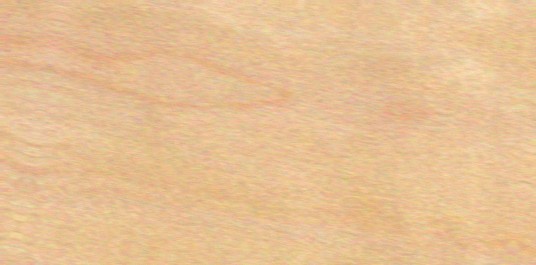

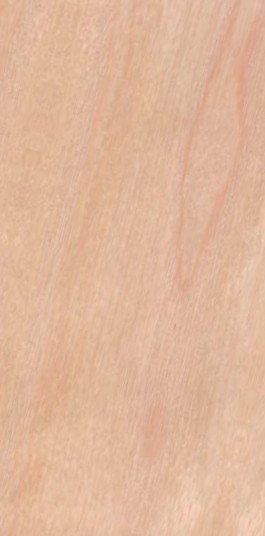

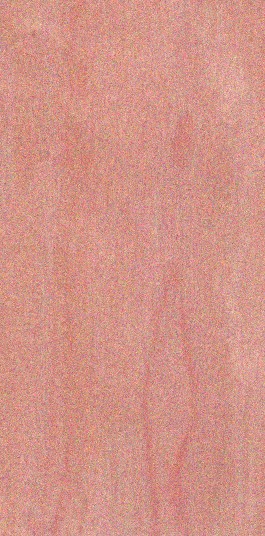

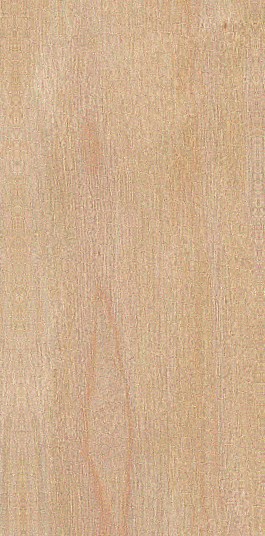

• Ash has good hardness at about 1,530 lbf, but it is non-durable and porous, so it should be limited to dry indoor bars with a full film finish rather than outdoor or sink-adjacent work.

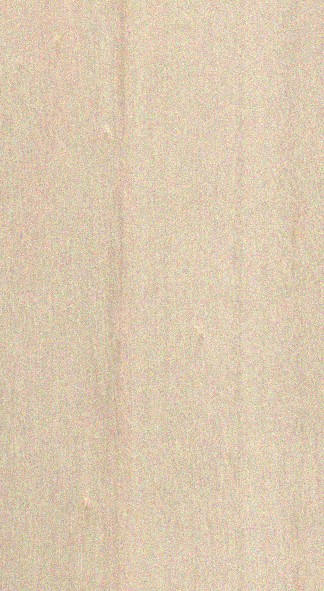

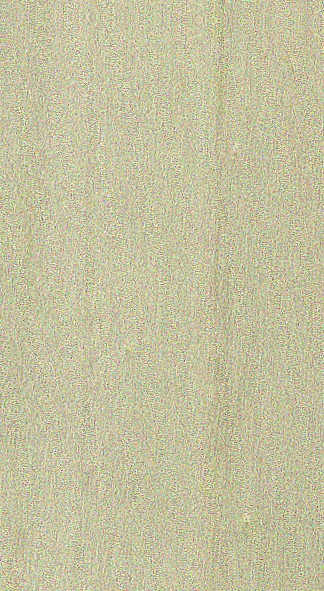

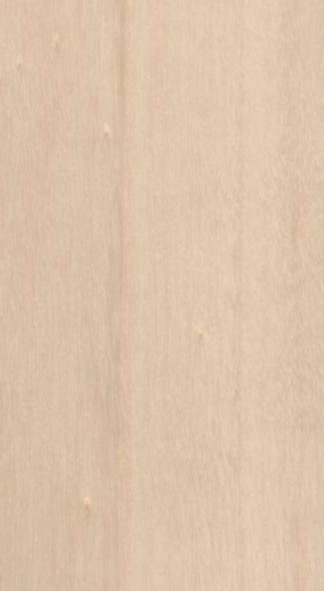

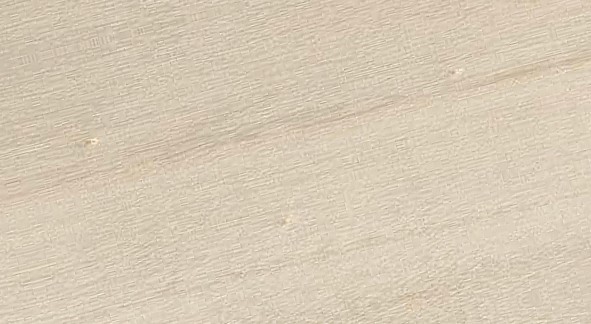

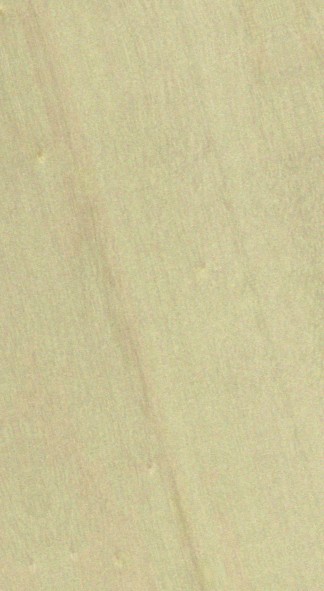

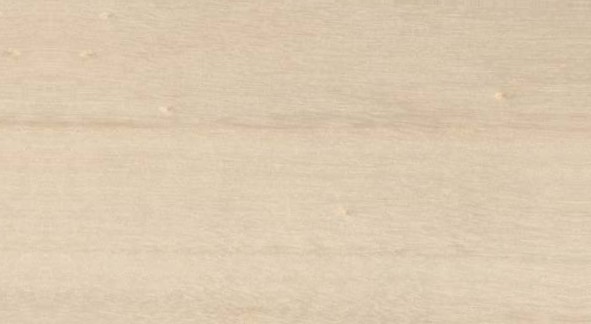

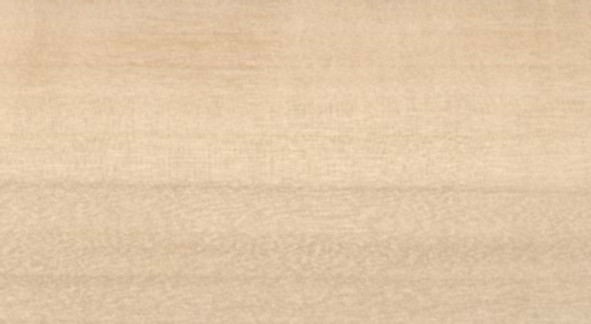

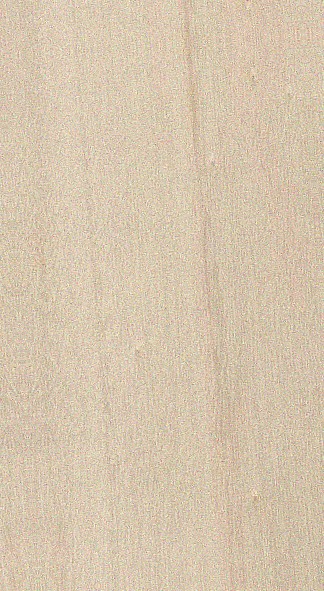

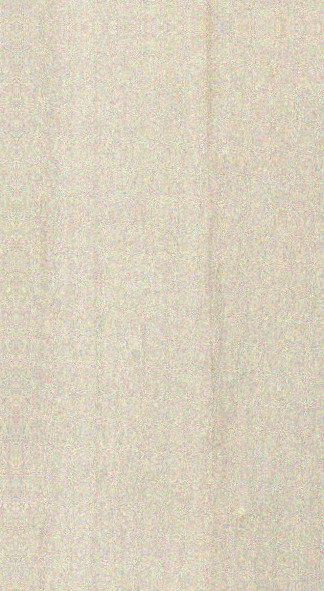

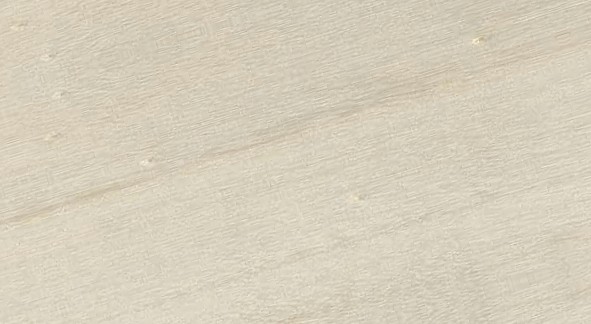

• Poplar is non-durable and soft at about 390 lbf, so it is better used for painted trim, bar fronts, or secondary parts than as the main wear surface.
• Hard Maple finishes to a tight, smooth surface, but its decay rating means the finish must remain intact anywhere liquid can reach seams, screw holes, or end grain.
• Walnut can be used successfully under a durable film finish, but its moderate decay resistance does not remove the need for coasters, prompt cleanup, and sealed underside surfaces.

Hardness helps a bar top resist dents, but very dense woods can make installation and repair more difficult. The most practical choice is usually hard enough for the traffic level without becoming unmanageable to machine, fasten, or refinish.

• Hard Maple at about 1,920 lbf is a strong indoor choice for repeated glassware contact because it resists denting and has a fine texture that wipes clean after finishing.
• White Oak at about 1,620 lbf gives a good balance of hardness and workability, making it suitable for home bars and many commercial-style installations where moisture resistance is also important.
• Walnut at about 960 lbf should be chosen with the expectation that it can develop small dents and handling marks; in a bar top, that is acceptable when the darker color and more restrained grain are the main design goals.

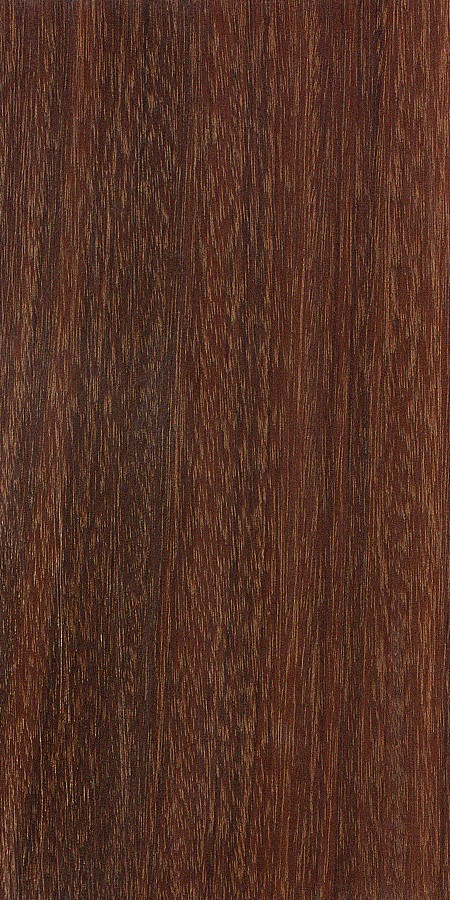

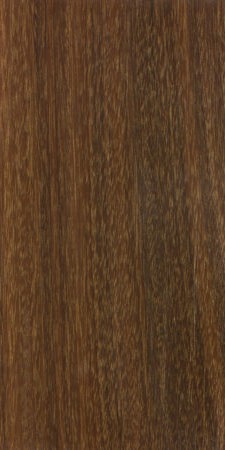

• Ipe at about 4,380 lbf and 65.5 lb/ft³ is exceptionally wear resistant, but the weight and cutting resistance affect substructure, delivery, fastening, and tool selection.
• Bubinga at about 3,060 lbf and 57.4 lb/ft³ gives excellent dent resistance for a showpiece bar, but its density requires pre-boring and careful glue practice during fabrication.

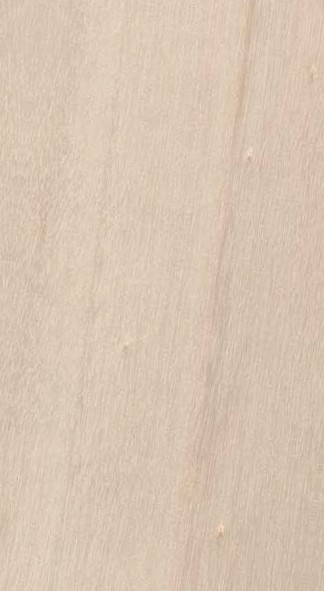

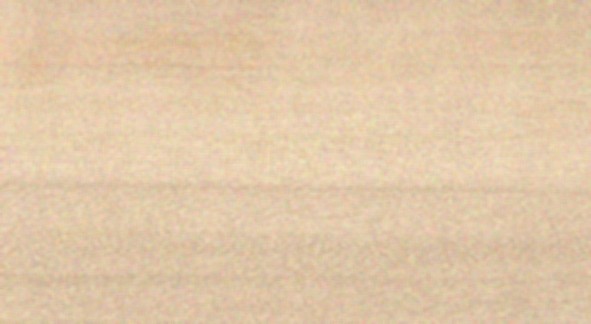

• Poplar at about 390 lbf is too soft for a primary bar surface that will see bottles, stools, and trays; it can dent from ordinary use even under a sound finish.

Bar tops are large visual surfaces, so grain character is not a minor detail. Coarse pores, dark streaks, ray fleck, figure, and color change all influence how the top looks after finishing and after years of wiping and use.

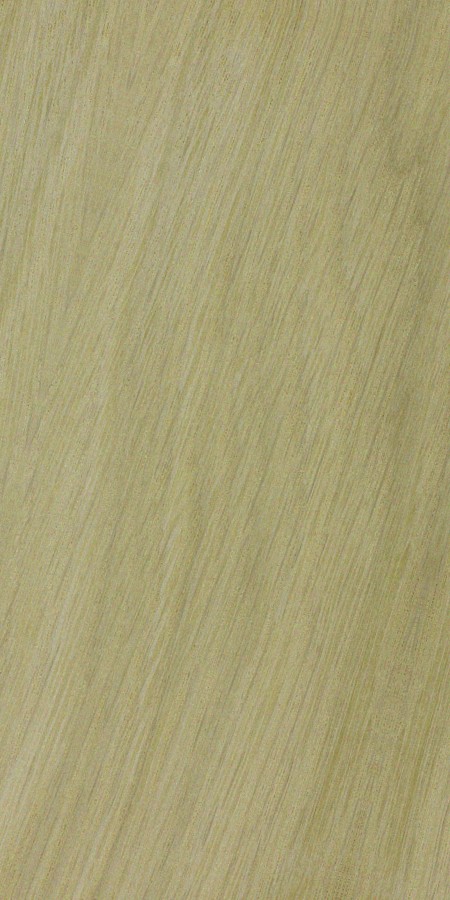

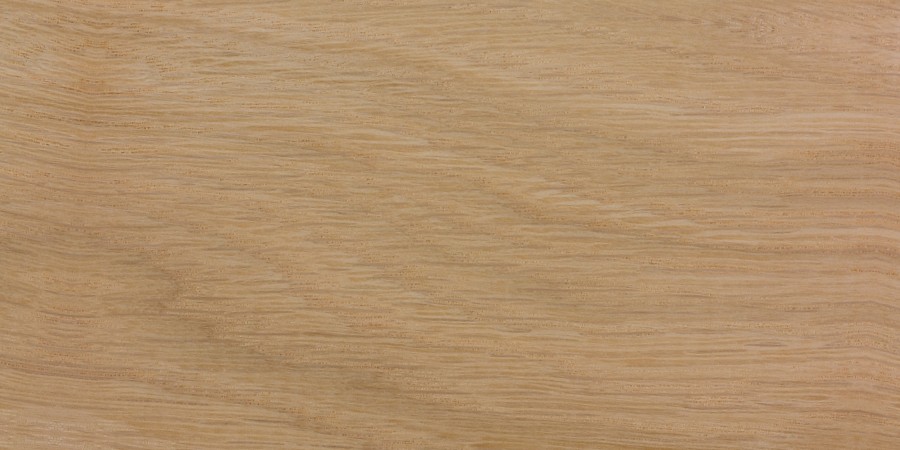

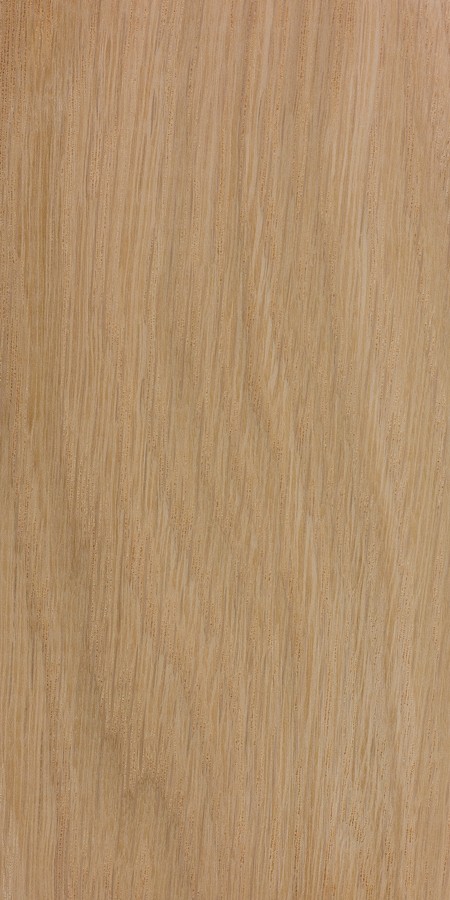

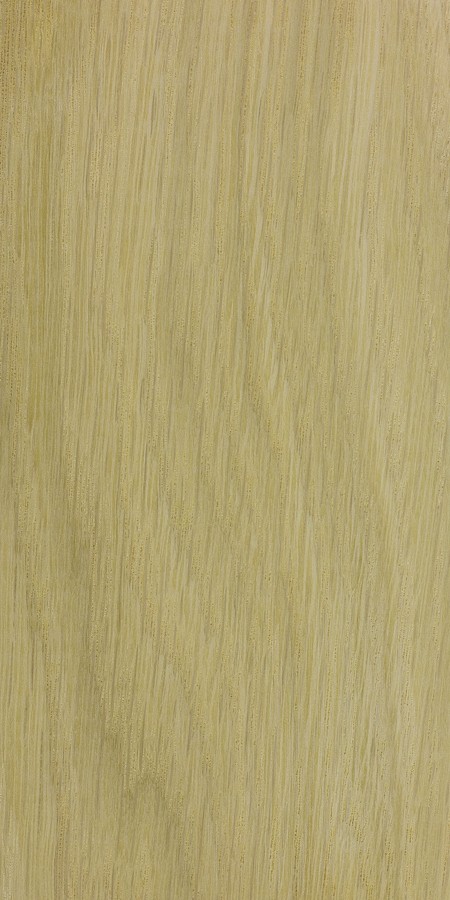

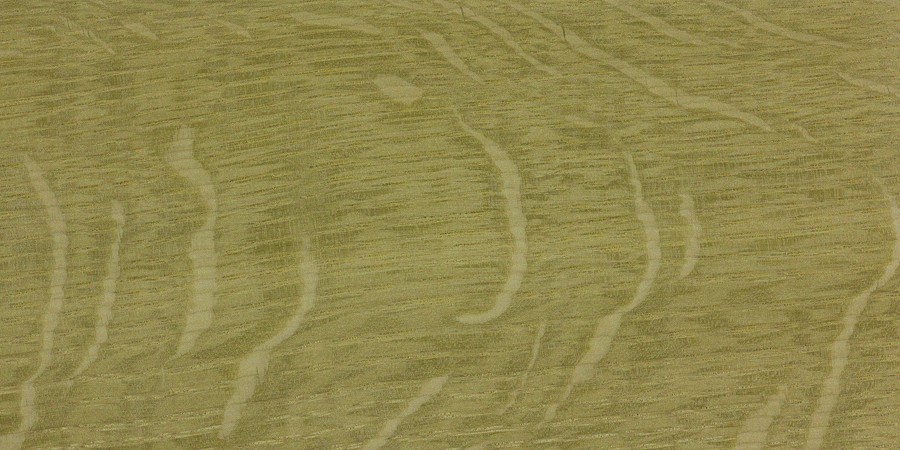

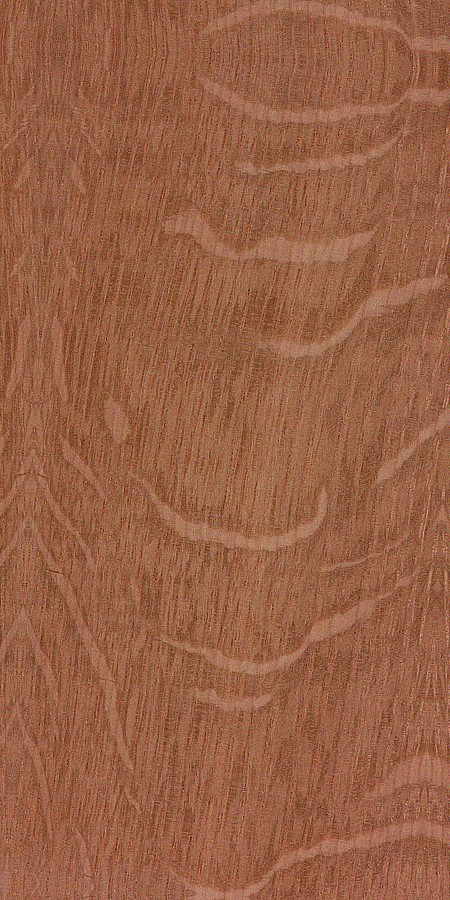

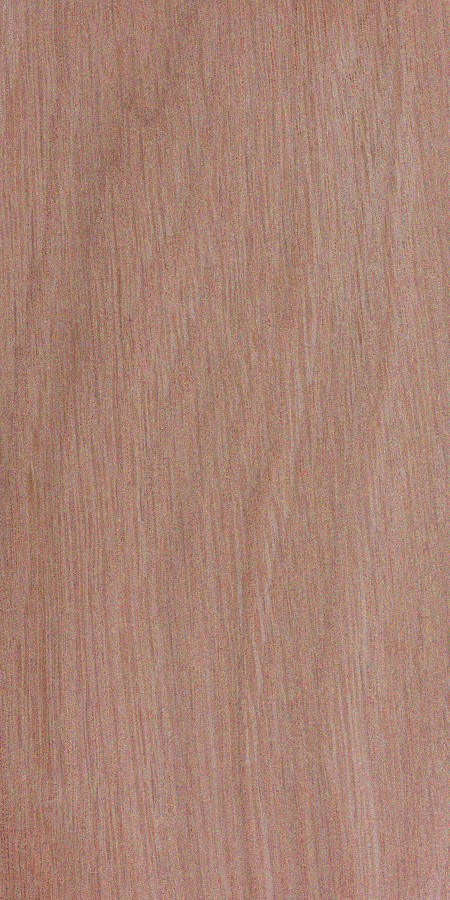

• White Oak has light to medium brown color and strong ray fleck on quartersawn faces, so it works well when a bar top needs visible grain and a traditional or architectural surface.

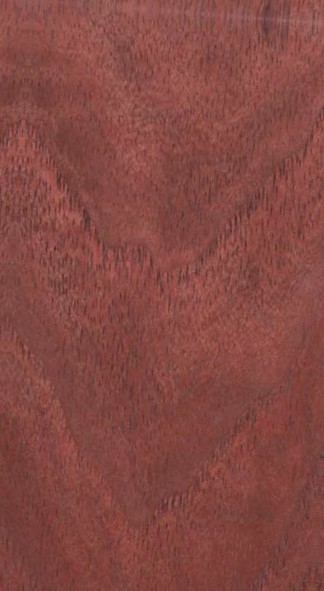

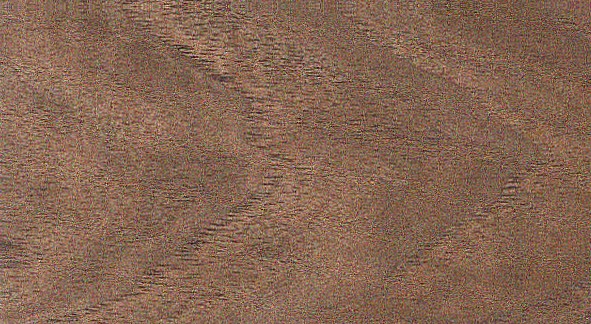

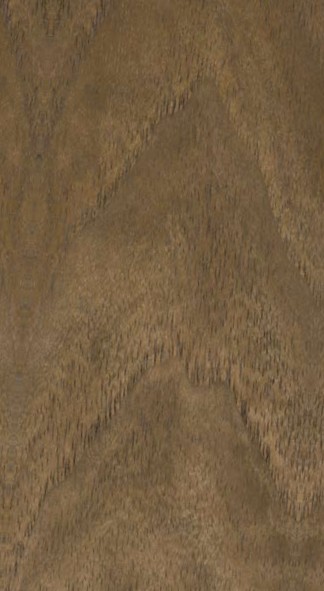

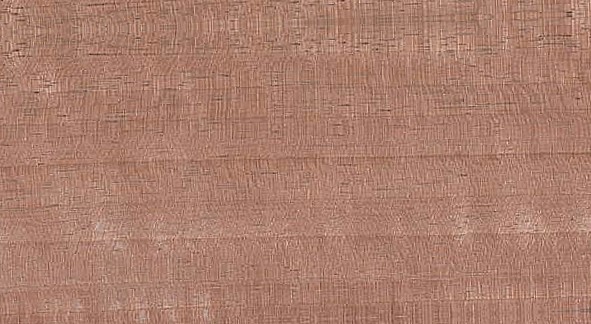

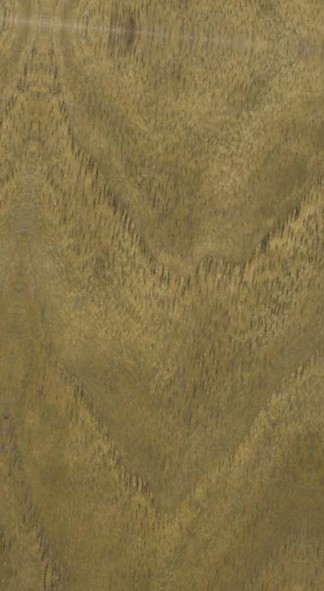

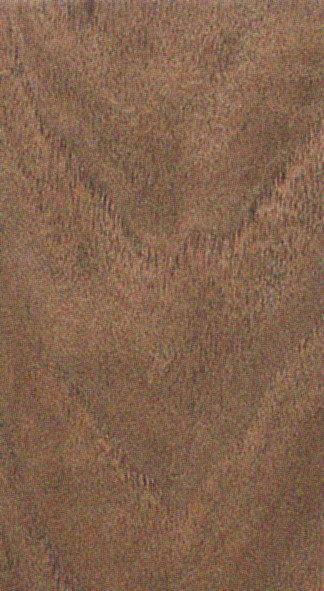

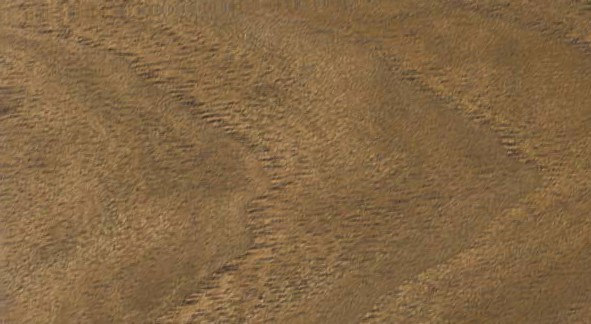

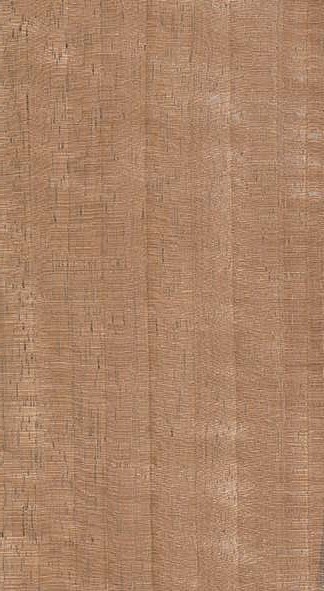

• Walnut brings brown, grayish, and darker-veined color that helps hide minor shadowing from daily use, though its softer surface means the finish should be chosen with dent repair and future refinishing in mind.

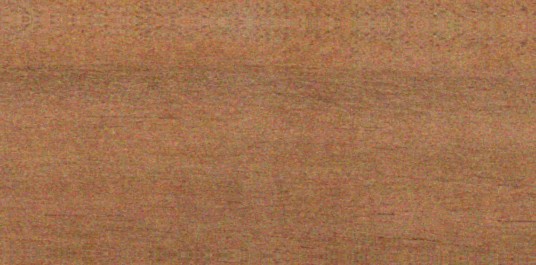

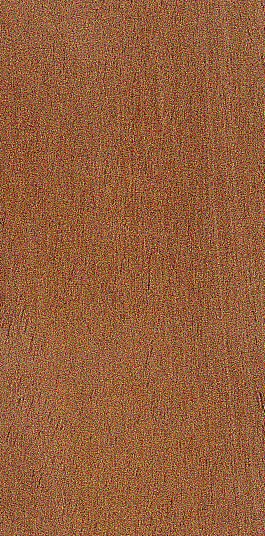

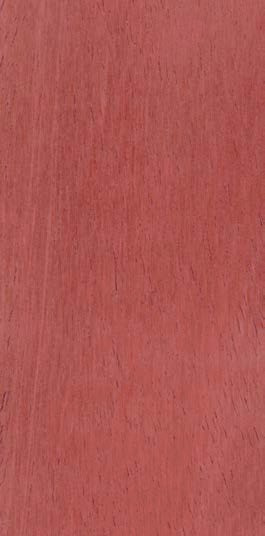

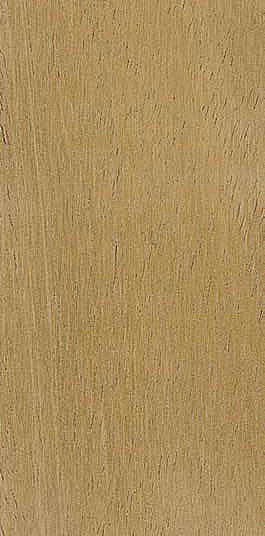

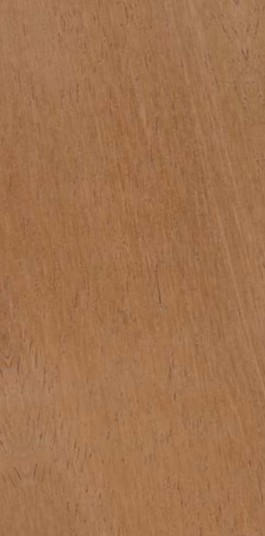

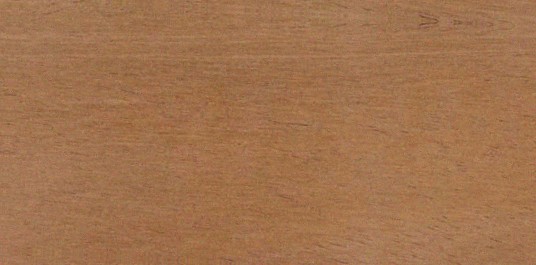

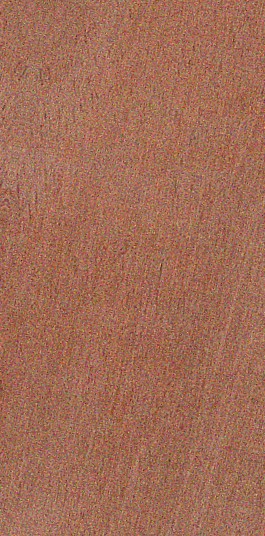

• Mahogany offers red-brown color, medium texture, and generally cooperative machining, so it is useful for shaped bar rails, molded edges, and a smoother formal appearance.

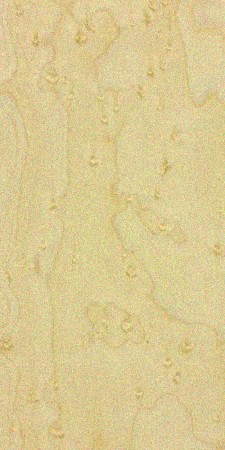

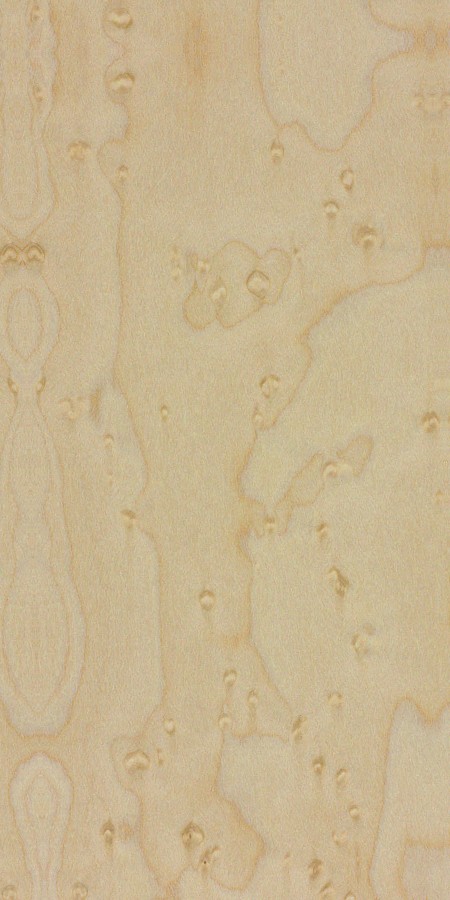

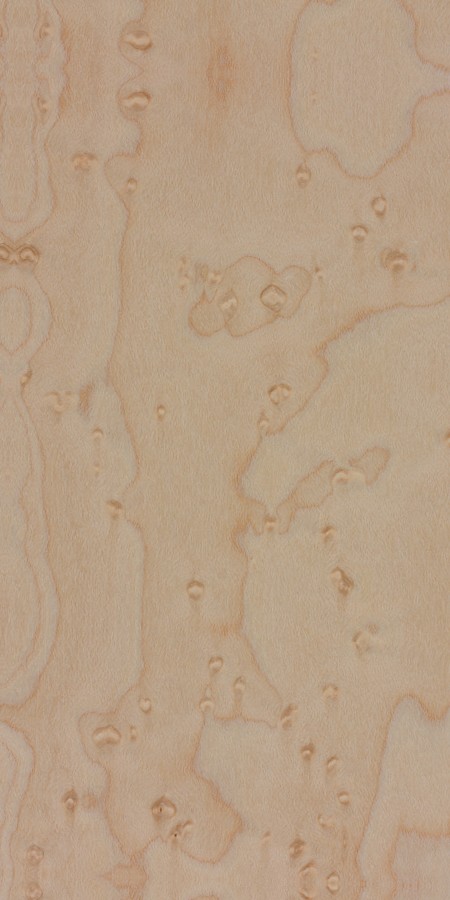

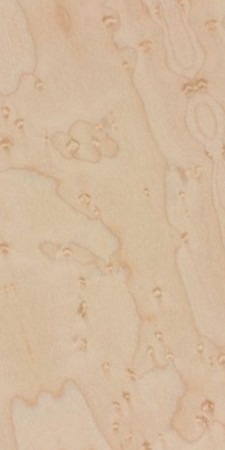

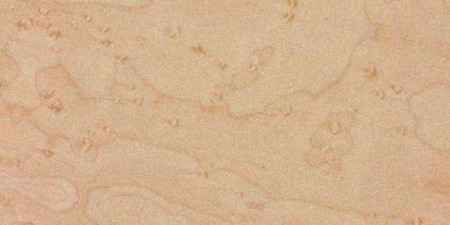

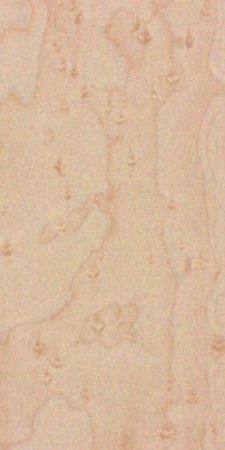

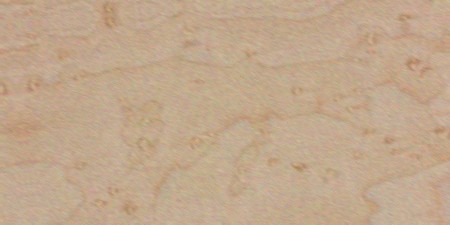

• Hard Maple provides a pale, fine-textured surface that brightens a room and gives a cleaner visual field; figured stock can be costly and may need care during staining to avoid blotchiness.

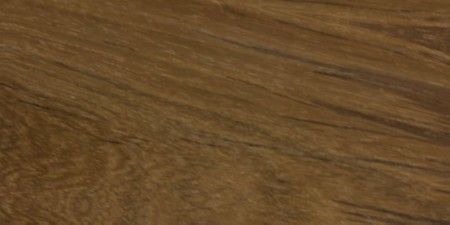

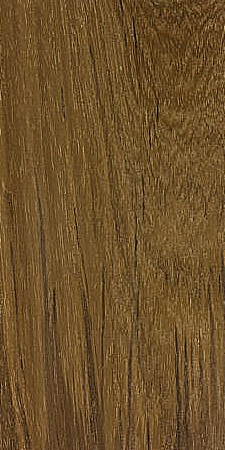

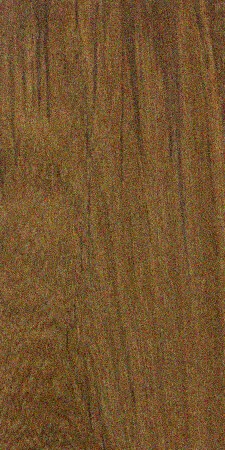

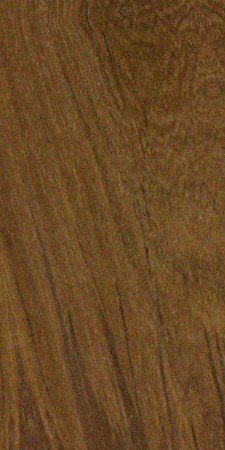

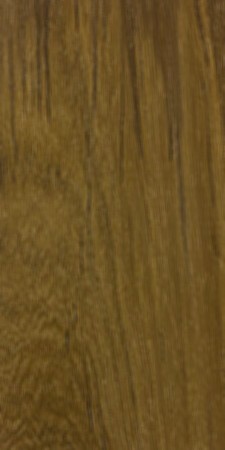

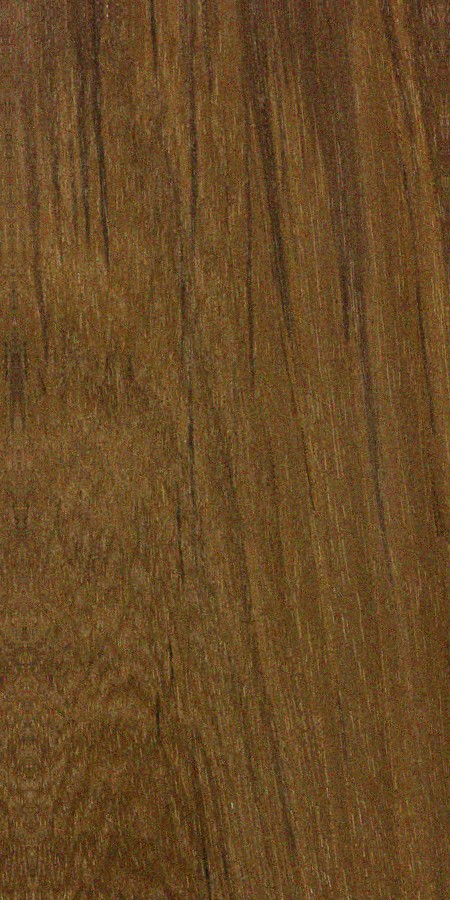

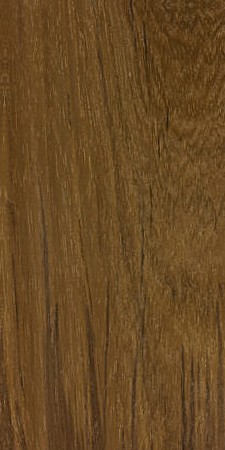

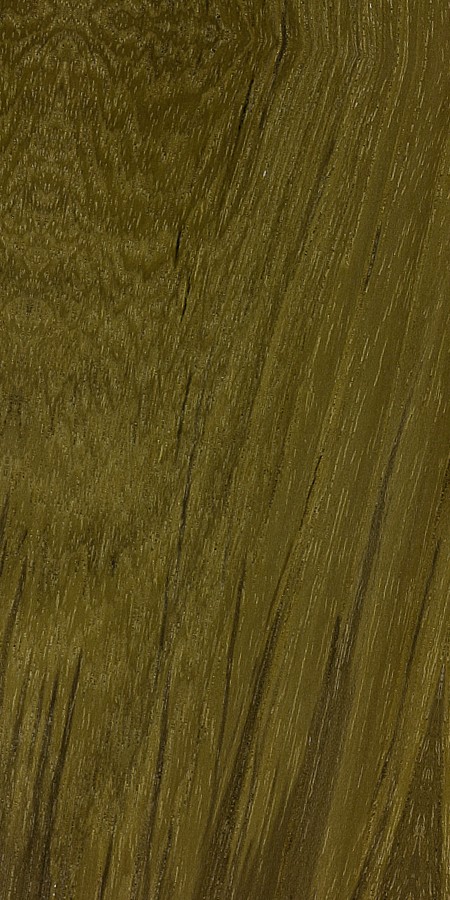

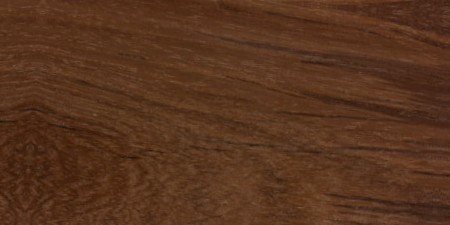

• Teak starts yellow-brown and darkens with golden tones, which suits outdoor or humid bars where a weathering surface is acceptable.

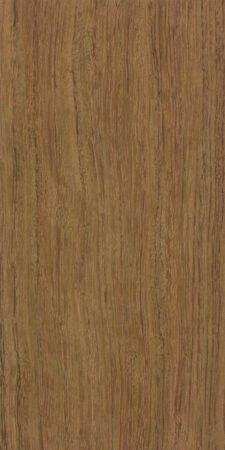

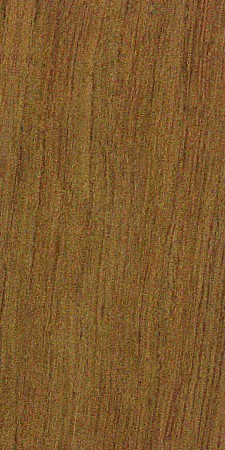

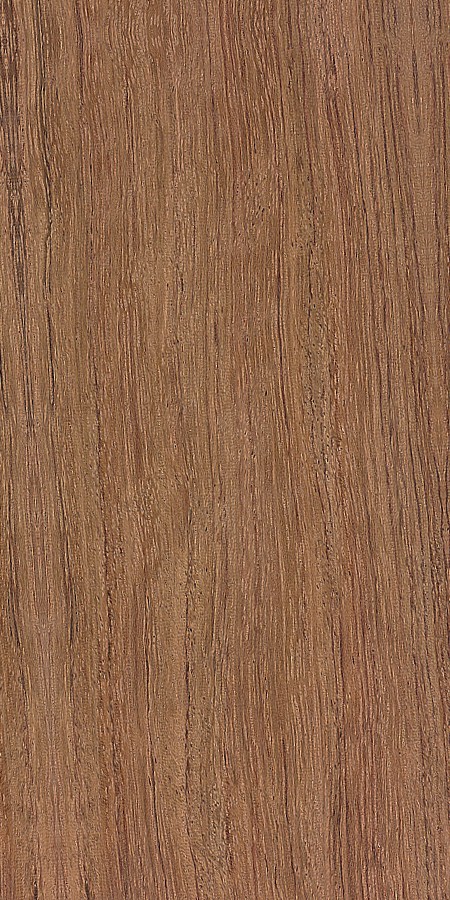

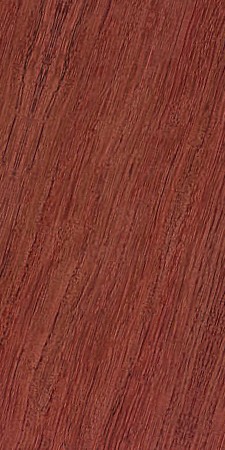

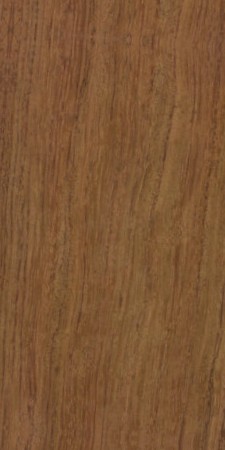

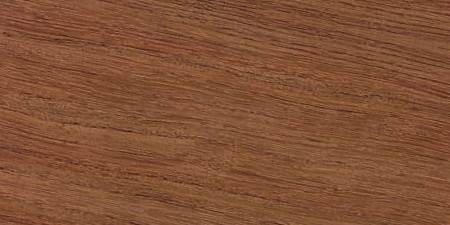

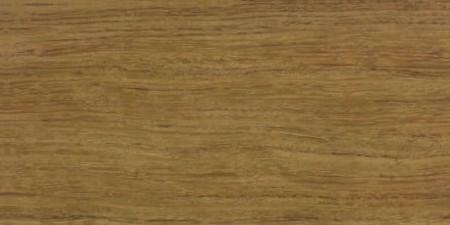

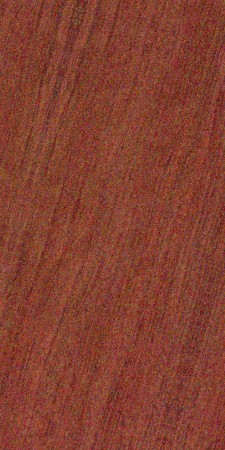

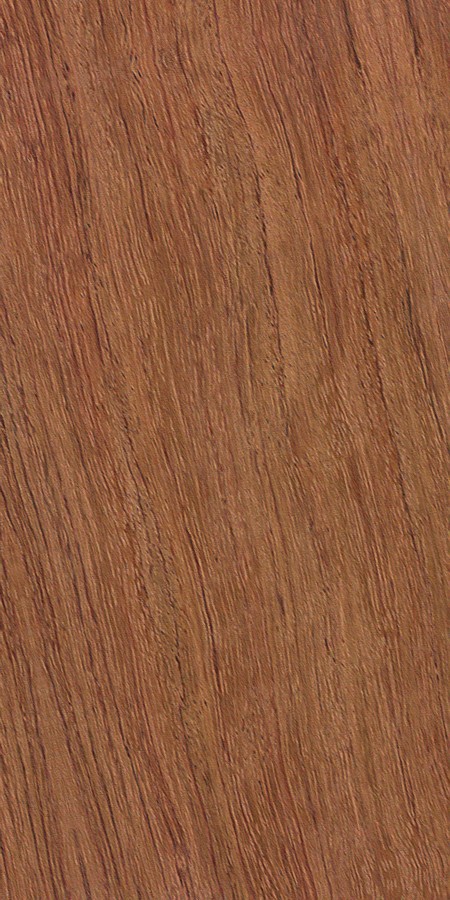

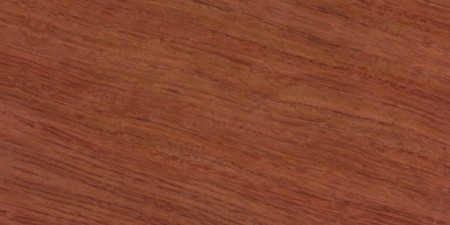

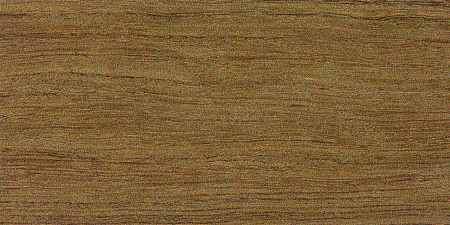

• Bubinga has reddish brown color with purplish or darker veining, making it visually dramatic; its interlocked or wavy grain needs sharp tools and cautious surfacing to avoid tearout.

A bar top usually combines a wide surface, overhangs, rails, seams, and cutouts. Good species selection must be paired with joinery that allows seasonal movement and with stock that has already been dried correctly.

• White Oak is slow and difficult to dry, with high checking risk, so bar tops should be built from well-conditioned lumber rather than recently dried or questionable stock.
• Hard Maple can warp if dried too fast, so wide boards and figured pieces should be selected for flatness and acclimated before milling.
• Walnut has a slight distortion risk during drying, which supports its use in wide indoor tops when boards are properly seasoned and oriented for stable glue-up.
• Teak has very slight distortion and checking risk when dried correctly, making it helpful for humid spaces, but its oils require freshly prepared surfaces for glue joints.
• Ipe should be dried slowly and always pre-bored for screws because its high density can split fastener areas and makes later adjustment difficult.
• Bubinga has high drying distortion and checking risk, so thick slabs or wide boards need careful sourcing and machining before they are committed to a bar layout.
